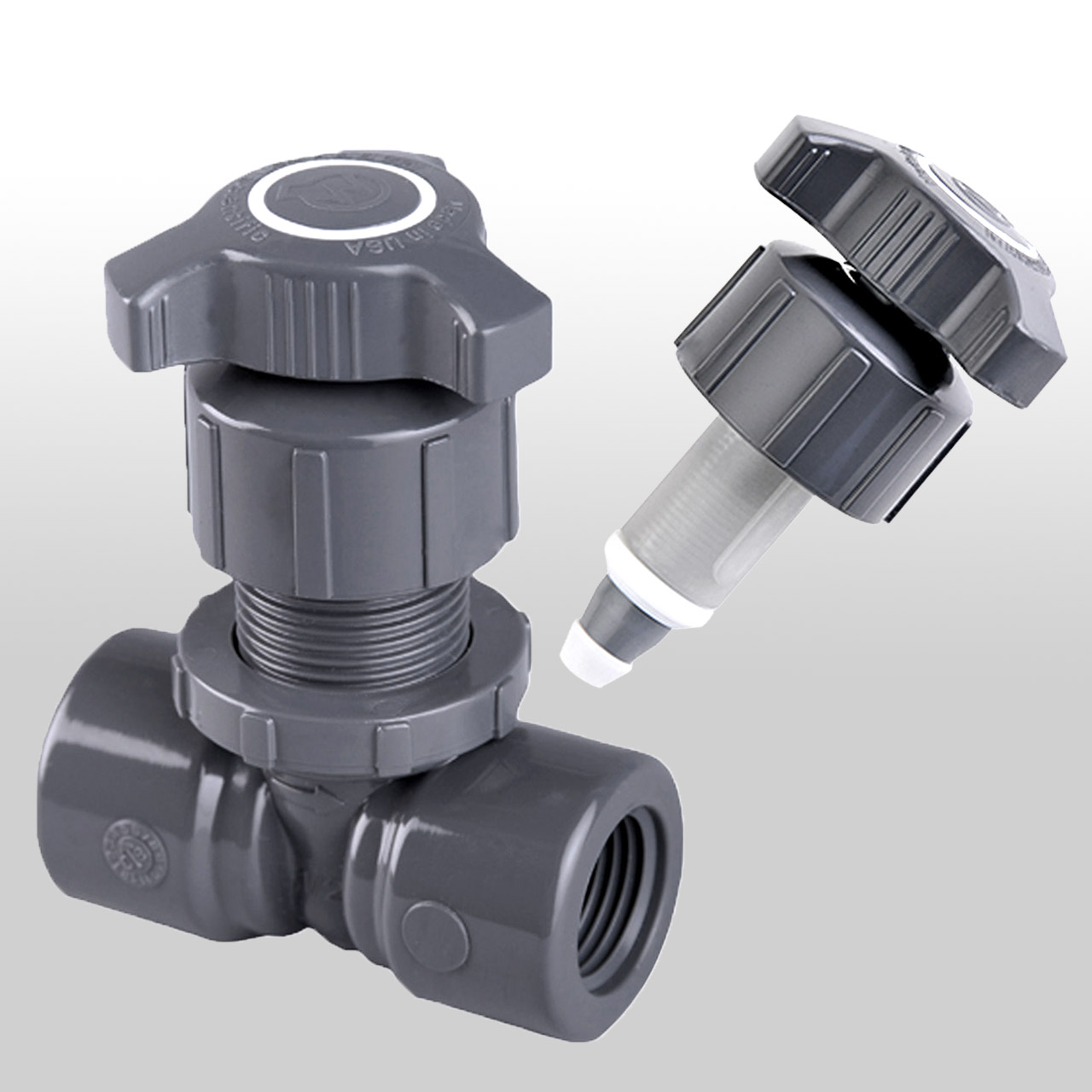

PTFE On/Off seal is easily replaced in the field, no tools required
Exceptional Low Torque on/off operation
Needle finish, SPI/SPE No. 1. Bubble tight, low torque shutoff long term performance.
All injection molded, rugged design and construction
24 Pitch metering thread. 20% Finer metering control. Excellent Linearity of Flow.
Needle Stem is PTFE sealed for excellent chemical resistance & high purity.
Integrally designed panel mounting, no fasteners required, mounts to panel thicknesses from 1/16" to 1/2".
No elastomers (O-Rings), metals or lubricants, no corrosion, no contamination.
Item # |
Materials |
Inlet x Outlet |
Style |
Seal |
Cv Factor |
List Price |
Quantity | Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|
| NGL-250-PVC NGL-250-PVC/Asset/NG-250-PVC.jpg | Materials N/A PVC | Inlet x Outlet N/A 1/4" Female NPT | Style N/A Globe Pattern, L Series Needle | Seal N/A PTFE | Cv Factor N/A 0.310 | $88.95 |
Add To Cart
Request Quote |
|
| NGL-375-PVC NGL-375-PVC/ImgCustom/1002/placeholder_notavailable.gif | Materials N/A PVC | Inlet x Outlet N/A 3/8" Female NPT | Style N/A Globe Pattern, L Series Needle | Seal N/A PTFE | Cv Factor N/A 0.310 | $88.95 |
Add To Cart
Request Quote |
|
| NGL-500-PVC NGL-500-PVC/Asset/NG-250-PVC.jpg | Materials N/A PVC | Inlet x Outlet N/A 1/2" Female NPT | Style N/A Globe Pattern, L Series Needle | Seal N/A PTFE | Cv Factor N/A 0.620 | $94.95 |
Add To Cart
Request Quote |
|
| NAL-250-PVC NAL-250-PVC/Asset/NA-250-PVC.jpg | Materials N/A PVC | Inlet x Outlet N/A 1/4" Female NPT | Style N/A Angle Pattern, L Series Needle | Seal N/A PTFE | Cv Factor N/A 0.426 | $88.95 |
Add To Cart
Request Quote |
|
| NAL-375-PVC NAL-375-PVC/Asset/NA-250-PVC.jpg | Materials N/A PVC | Inlet x Outlet N/A 3/8" Female NPT | Style N/A Angle Pattern, L Series Needle | Seal N/A PTFE | Cv Factor N/A 0.426 | $88.95 |
Add To Cart
Request Quote |
|
| NAL-500-PVC NAL-500-PVC/Asset/NA-250-PVC.jpg | Materials N/A PVC | Inlet x Outlet N/A 1/2" Female NPT | Style N/A Angle Pattern, L Series Needle | Seal N/A PTFE | Cv Factor N/A 0.780 | $94.95 |
Add To Cart
Request Quote |
|
| NGL-250-CPV NGL-250-CPV/ImgCustom/1002/placeholder_notavailable.gif | Materials N/A CPVC | Inlet x Outlet N/A 1/4" Female NPT | Style N/A Globe Pattern, L Series Needle | Seal N/A PTFE | Cv Factor N/A 0.310 | $94.95 |
Add To Cart
Request Quote |
|
| NGL-375-CPV NGL-375-CPV/Asset/NG-375-CPV-s.jpg | Materials N/A CPVC | Inlet x Outlet N/A 3/8" Female NPT | Style N/A Globe Pattern, L Series Needle | Seal N/A PTFE | Cv Factor N/A 0.310 | $94.95 |
Add To Cart
Request Quote |
|
| NGL-500-CPV NGL-500-CPV/ImgCustom/1002/placeholder_notavailable.gif | Materials N/A CPVC | Inlet x Outlet N/A 1/2" Female NPT | Style N/A Globe Pattern, L Series Needle | Seal N/A PTFE | Cv Factor N/A 0.620 | $97.95 |
Add To Cart
Request Quote |
|
| NAL-250-CPV NAL-250-CPV/ImgCustom/1002/placeholder_notavailable.gif | Materials N/A CPVC | Inlet x Outlet N/A 1/4" Female NPT | Style N/A Angle Pattern, L Series Needle | Seal N/A PTFE | Cv Factor N/A 0.426 | $94.95 |
Add To Cart
Request Quote |
|
| NAL-375-CPV NAL-375-CPV/ImgCustom/1002/placeholder_notavailable.gif | Materials N/A CPVC | Inlet x Outlet N/A 3/8" Female NPT | Style N/A Angle Pattern, L Series Needle | Seal N/A PTFE | Cv Factor N/A 0.426 | $94.95 |
Add To Cart
Request Quote |
|
| NAL-500-CPV NAL-500-CPV/ImgCustom/1002/placeholder_notavailable.gif | Materials N/A CPVC | Inlet x Outlet N/A 1/2" Female NPT | Style N/A Angle Pattern, L Series Needle | Seal N/A PTFE | Cv Factor N/A 0.780 | $97.95 |
Add To Cart
Request Quote |
|
| NGL-250-PPR NGL-250-PPR/Asset/NG-PPR.jpg | Materials N/A Polypro | Inlet x Outlet N/A 1/4" Female NPT | Style N/A Globe Pattern, L Series Needle | Seal N/A PTFE | Cv Factor N/A 0.310 | $90.95 |
Add To Cart
Request Quote |
|
| NGL-375-PPR NGL-375-PPR/Asset/NG-375.PPR.jpg | Materials N/A Polypro | Inlet x Outlet N/A 3/8" Female NPT | Style N/A Globe Pattern, L Series Needle | Seal N/A PTFE | Cv Factor N/A 0.310 | $90.95 |
Add To Cart
Request Quote |
|
| NGL-500-PPR NGL-500-PPR/Asset/NG-PPR.jpg | Materials N/A Polypro | Inlet x Outlet N/A 1/2" Female NPT | Style N/A Globe Pattern, L Series Needle | Seal N/A PTFE | Cv Factor N/A 0.620 | $95.50 |
Add To Cart
Request Quote |
|
| NAL-250-PPR NAL-250-PPR/Asset/NA-PPR.jpg | Materials N/A Polypro | Inlet x Outlet N/A 1/4" Female NPT | Style N/A Angle Pattern, L Series Needle | Seal N/A PTFE | Cv Factor N/A 0.426 | $90.95 |
Add To Cart
Request Quote |
|
| NAL-375-PPR NAL-375-PPR/Asset/NA-PPR.jpg | Materials N/A Polypro | Inlet x Outlet N/A 3/8" Female NPT | Style N/A Angle Pattern, L Series Needle | Seal N/A PTFE | Cv Factor N/A 0.426 | $90.95 |
Add To Cart
Request Quote |
|
| NAL-500-PPR NAL-500-PPR/Asset/NA-PPR.jpg | Materials N/A Polypro | Inlet x Outlet N/A 1/2" Female NPT | Style N/A Angle Pattern, L Series Needle | Seal N/A PTFE | Cv Factor N/A 0.780 | $95.50 |
Add To Cart
Request Quote |
