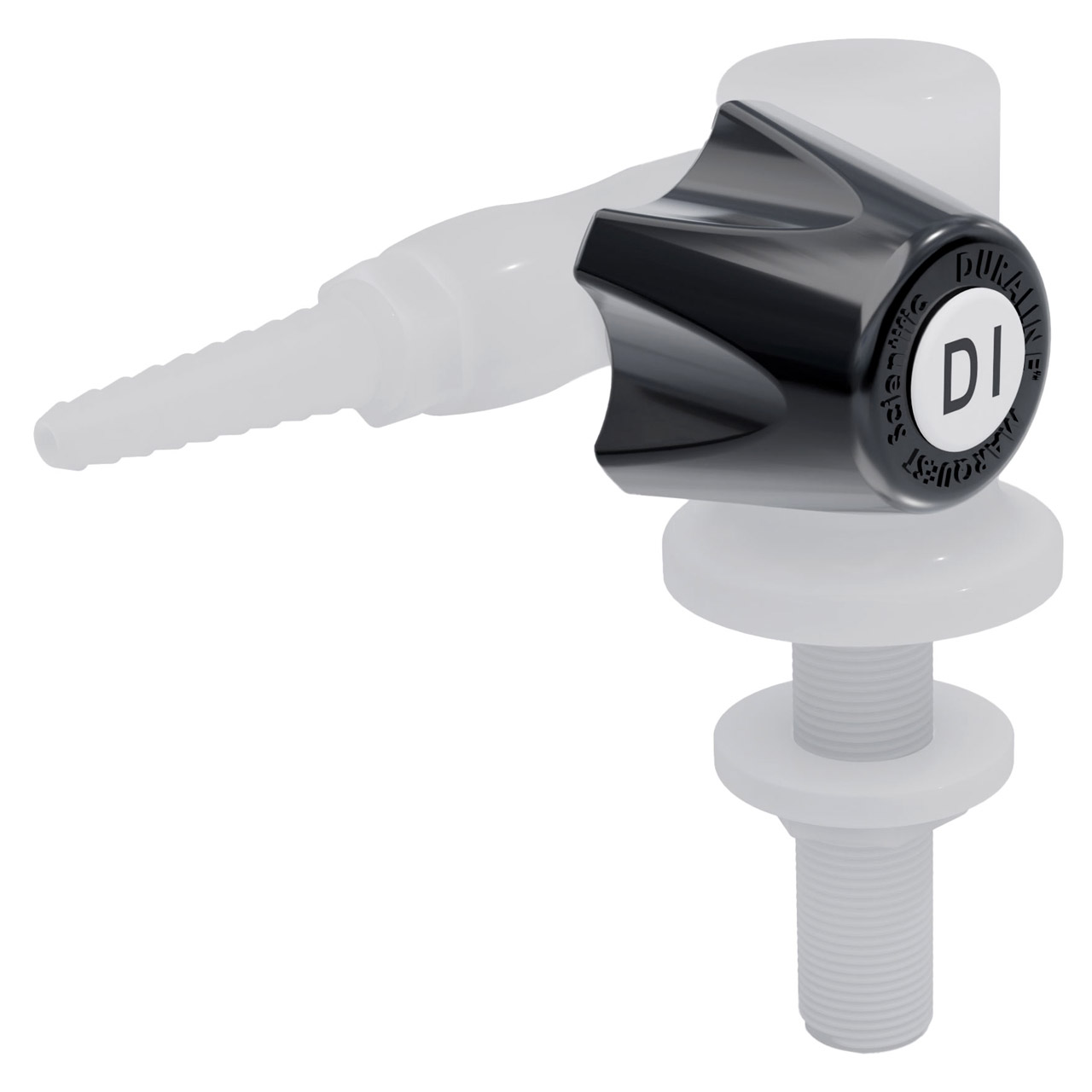

PVDF Lab Turret, Right Handle

Distilled, Deionized, & RO Water Applications as well as Chemical Dispensing.

Virgin Solef PVDF material listed under NSF Standard 14/61 for both potable water and DWV applications and FDA approved
FDA, USDA, and USP standards are either met and/or exceeded.
No Elastomers (O-Rings), Metals or Lubricants No Corrosion, No Contamination.
Beautifully finished to enhance all installations
All injection molded, rugged design and construction
Standard 3/8" female NPT inlet connection
Removable Outlet barb fitting connects to different size tubing (Leaves 1/4" Fem NPT outlet when removed)
Valve is Crevice Free with Zero Dead Leg
PTFE sealed, encapsulated PTFE shut off seal for unlimited life
Black handle with white marker and black "DI" text per SEFA code recommended practice No. 7 for DI Water Applications
Duraline control valve is completely renewable by replacing the internal cartridge, per SEFA 7-2010-8.2a
Positive stop at off position

Unit of Measure

Inlet Connection	N/A 3/8" NPT, Female
Materials	N/A PVDF
Configuration	N/A Deck or Wall Mount, Right Handle
Note:	N/A All Units can be either Deck Mounted or Wall Mounted 1. All assemblies include a 3" Thru-Deck Nipple, Ring Nut, and Causual Water Gasket. 2. Inlet Connection on all assemblies is 3/8" Femal NPT. 3. All assemblies require 1" diameter hole for mounting. 4. Maximum deck or wall thickness is 3".
