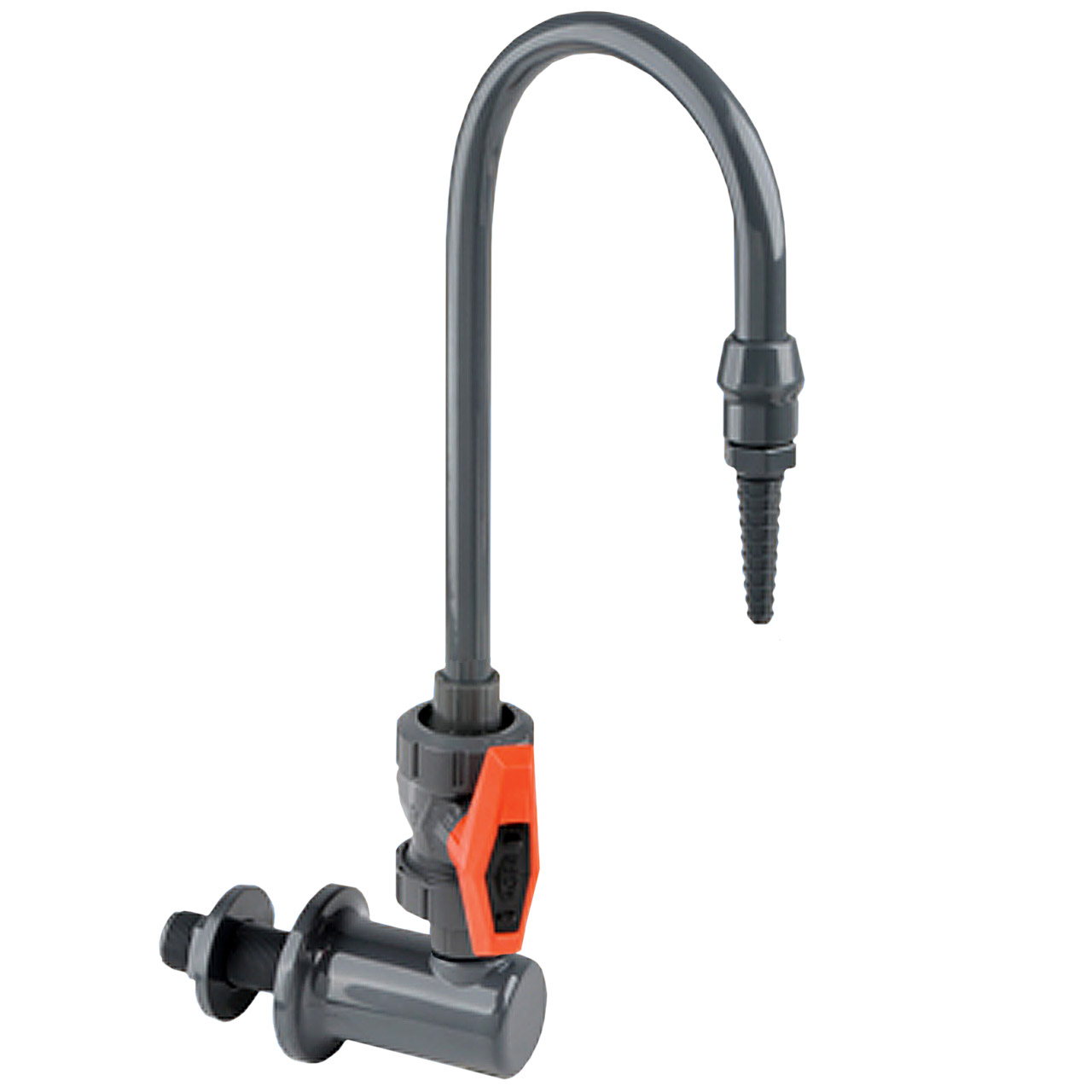

Item # LG-WB-F1, PVC Lab Faucet, Wall Mount, Rugged 1/4 Turn Union Ball Valve, Serrated Barb Outlet(Accepts 1/4"-1/2" I.D. Tubing), 3/8" Female NPT Inlet Supply Connection, Handle in Front On Marquest Scientific, Inc.

Series LG PVC Lab Faucet with Union Ball Valve
Fields of Application: Distilled, Deionized, RO, Ultra Filtrated Water, Chemical Dispensing.

Flow Rate : 6.5 GPM at Full Open, 70 PSI Working Pressure
Working Pressure: Maximum 150 psi at 70 Degrees Farenheit
Materials: PVC, Viton O-Ring Seal
Materials listed under NSF Standard 14/61 for both potable water and DWV applications and FDA approved FDA, USDA, and USP standards are either met and/or exceeded.
Beautifully finished to enhance all installations
All injection molded, rugged design and construction
Standard 3/8" female NPT inlet connection, other connections available
Outlet serrated barb fitting accepts 1/4"-1/2" I.D. Soft (Low Durometer) Tubing
Union Ball Valve provides adjustable orientation of handle and gooseneck, higher flow rates and 1/4 turn on/off.

Materials	N/A PVC, Viton Orings
Configuration	N/A Wall Mount, Handle in Front
Max PSI	N/A 150
Shipping Note	N/A We will let you know the shipping charges once we receive the order.
