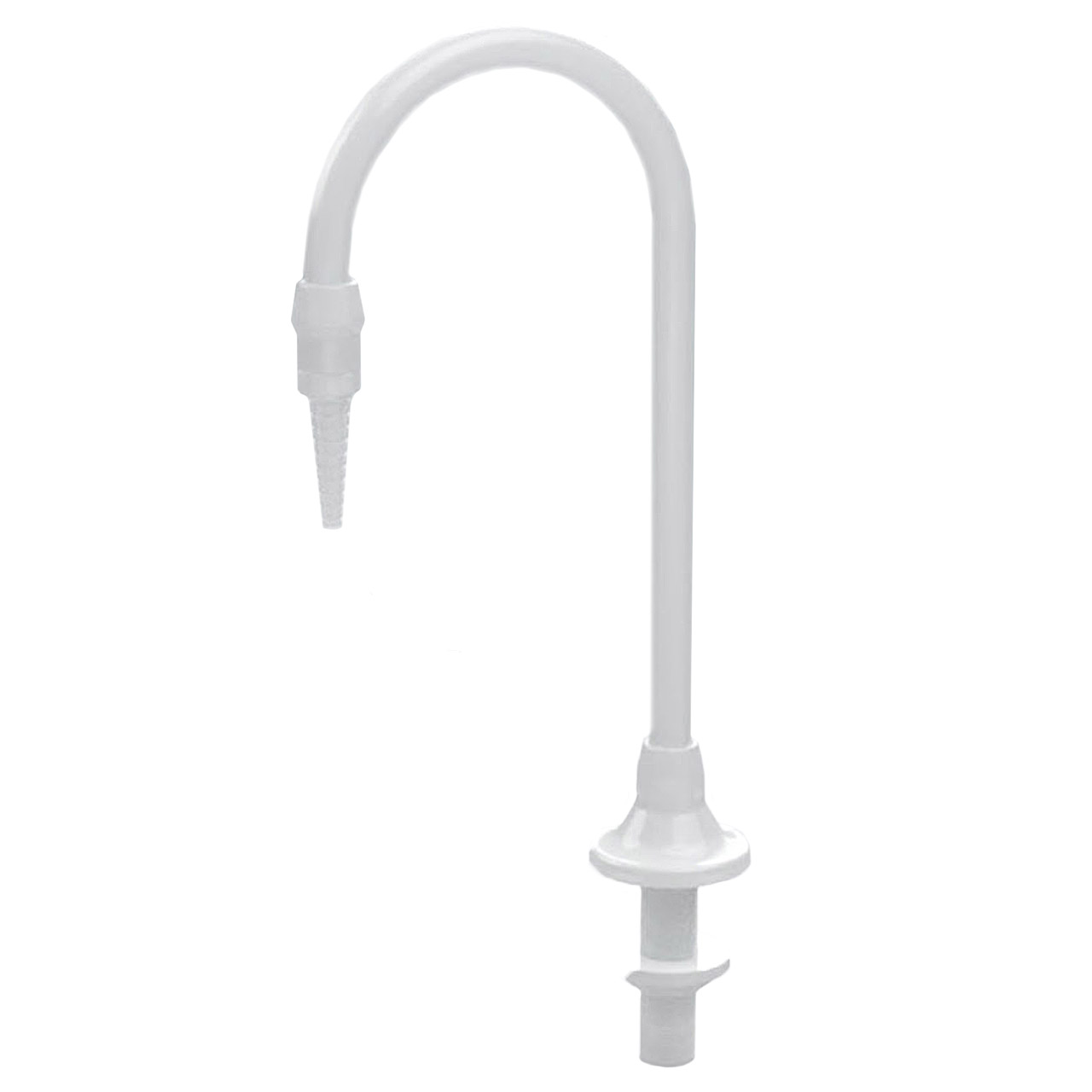

Item # LG-DR-X3 - PVDF Lab Faucet, Deck Mount, Remote, No Valve, 3/8" Fem NPT Inlet, Removable Serrated Barb Tip (Leaves 1/4" Fem NPT Outlet)

High Purity Remote Deck Mount Faucet for Precision Laboratory Applications

Product Overview

The LG-DR-X3 is a deck-mounted gooseneck faucet designed for remote operation in demanding laboratory environments. This remote faucet is engineered without an integrated control valve, allowing for actuation via a separate remote valve system. Constructed from high-purity PVDF (Polyvinylidene Fluoride), this faucet provides excellent contamination resistance and durability, making it suitable for applications requiring high standards of purity and chemical compatibility.

Key Features

• Material: 100% Virgin Solef PVDF for superior purity and chemical resistance
• Configuration: Deck Mount, Remote, No Integrated Valve
• Operation: Designed for use with remote valve actuation systems
• Inlet: 3/8" Female NPT
• Outlet: Removable Serrated Barb Tip (leaves 1/4" Female NPT when removed)
• Max Flow Rate: 2.5 GPM @ 80 PSI
• Certifications: Meets or exceeds FDA, USDA, and USP standards
• Material Compliance: PVDF material is compliant with NSF Standard 14/61 for both potable water and DWV applications

High-Purity PVDF Advantages

• Low Phosphate Absorption: Minimizes nutrient availability for microorganisms
• Smooth Surface Condition: Inhibits biofilm adhesion and growth
• Chemical Inertness: Resists reaction with a wide range of chemicals
• Low Extractables: Minimizes contamination of ultra-pure water and sensitive chemicals
• Excellent Thermal Stability: Maintains properties across a wide temperature range

Applications

Suitable for use with:

• Ultra-Pure Water Systems
• Distilled Water
• Deionized Water
• Reverse Osmosis (RO) Water
• Ultra Filtrated Water
• Sensitive Chemical Dispensing

Design Highlights

• Remote design allows for flexible installation and operation
• All-injection molded construction for robust durability
• Heavy-wall, custom-extruded gooseneck for increased rigidity
• Versatile outlet accommodates various tubing sizes
• Smooth internal surfaces minimize turbulence and potential contamination sites

Why Choose the LG-DR-X3?

This remote gooseneck faucet combines the superior material properties of high-purity PVDF with practical design to meet the exacting standards of modern laboratories. Its composition ensures low levels of extractables, minimal biofilm formation, and strong chemical compatibility. The remote operation design allows for separate control valve placement, providing flexibility in laboratory setup and operation.

Appropriate for both new installations and upgrades in high-purity applications, the LG-DR-X3 offers reliable performance and cleanliness for critical and sensitive applications where preventing contamination and maintaining high levels of purity are essential.
