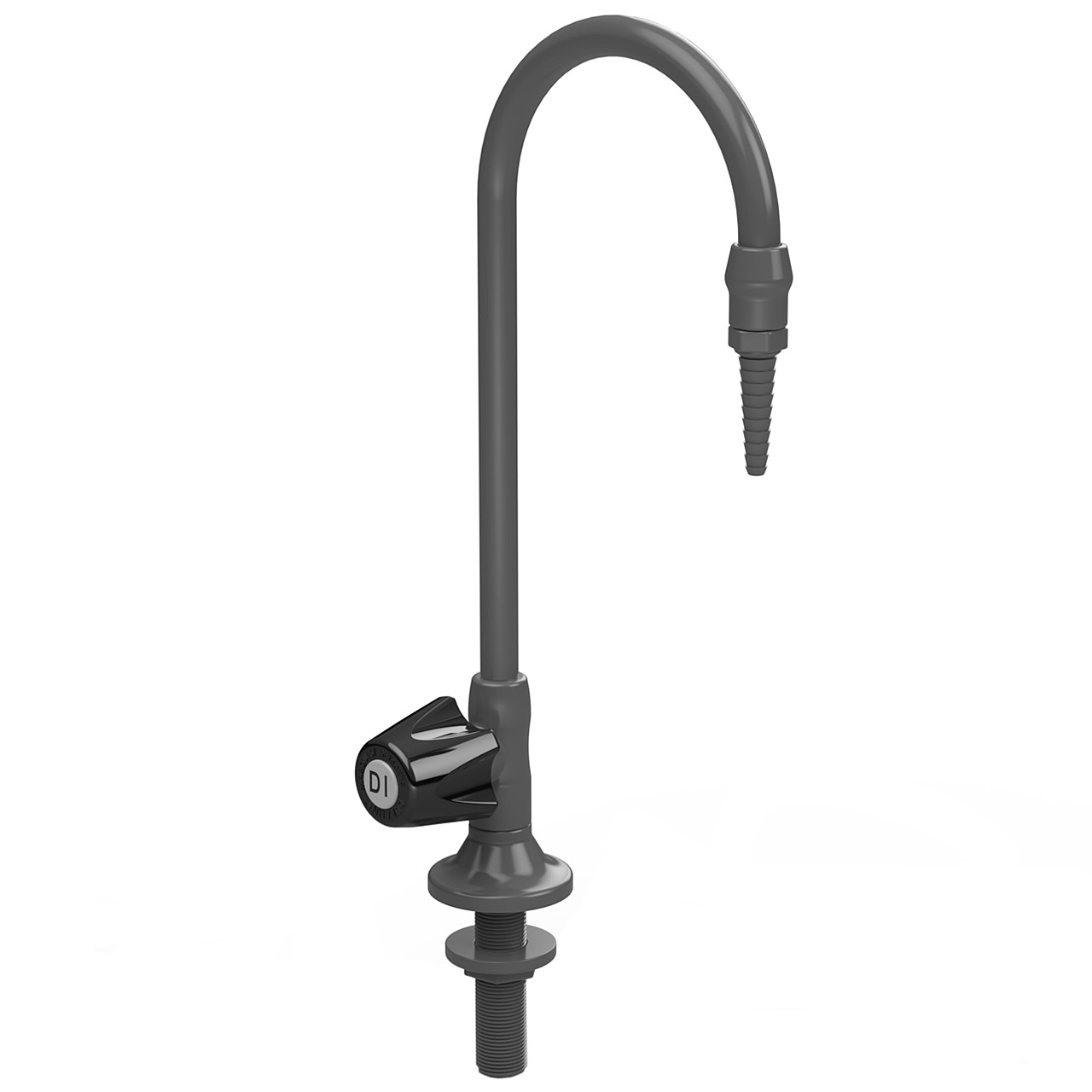

Item # LG-DD-L1, PVC Laboratory Faucet, Deck Mount, Duraline Control Valve, Left Handle On Marquest Scientific, Inc.

Distilled, Deionized, RO, and Ultra Filtrated Water Applications

Max flow of 2.5 GPM @ 80 PSI
Removable Serrated Barb Tip (Leaves 1/4" Fem NPT Outlet), attach accessory of your choice
"Duraline" zero dead leg control valve offer easy open/close operation, 120 deg full flow to closed
No elastomers, metals, or lubricants used in construction
All components designed for high traffic, hard use environments
FDA, USDA, and USP standards are either met and/or exceeded
Ultra smooth internal flow path
Unique heavy wall construction
PTFE sealed, encapsulated PTFE shut off seal for unlimited life
Black handle with white marker and black "DI" text per SEFA code recommended practice No. 7 for DI Water Applications
Duraline control valve is completely renewable by replacing the internal cartridge, per SEFA 7-2010-8.2a
Positive stop at off position
3/8" Fem NPT inlet supply connection, 3/8" O.D. tube x 3/8" MNPT compression tube fitting inlcluded

Unit of Measure

Materials	N/A PVC
Configuration	N/A Deck Mount, Left Handle
Inlet Connection	N/A 3/8" NPT, Female
Max PSI	N/A 200 PSI
Note:	N/A 1. All assemblies include a 3" Thru-Deck Nipple, Ring Nut, and Causual Water Gasket. 2. Inlet Connection on all assemblies is 3/8" Femal NPT. 3. All assemblies require 1" diameter hole for mounting. 4. Maximum deck or wall thickness is 3".
Shipping Note	N/A We will let you know the shipping charges once we receive the order.
