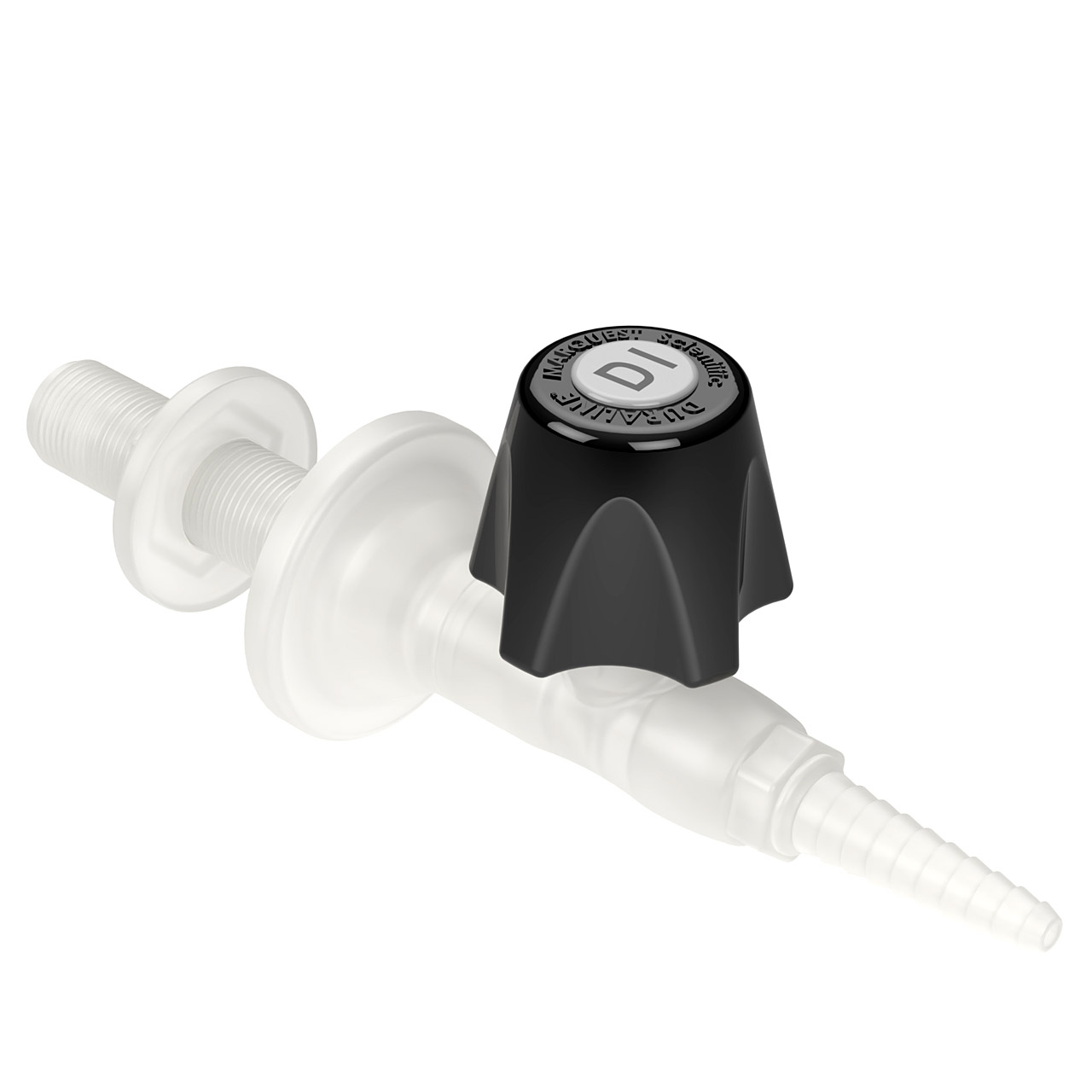

Item # LB-V-3, Lab Base Fixture, Deck or Wall Mount, Duraline Control Valve, 3/8" Fem NPT Inlet, Serrated Removable Barb Tip, PVDF On Marquest Scientific, Inc.

Lab Base Fixture, Deck or Wall Mount, Duraline Control Valve, 3/8" Fem NPT Inlet, Serrated Removable Barb Tip, PVDF

Unit of Measure

Configuration	N/A Deck or Wall Mount
Inlet Connection	N/A 3/8" Female NPT
Materials	N/A PVDF, PTFE Seal
Max PSI	N/A 200 PSI
Notes	N/A All Units can be either Deck Mounted or Wall Mounted 1. All assemblies include a 3" Thru-Deck Nipple, Ring Nut, and Causual Water Gasket. 2. Inlet Connection on all assemblies is 3/8" Femal NPT. 3. All assemblies require 1" diameter hole for mounting. 4. Maximum deck or wall thickness is 3".
Shipping Note	N/A We will let you know the shipping charges once we receive the order.
