Part No. LG-DDSU-R1 PVC Laboratory Faucet, Deck Mount, Duraline Control Valve with Integrated Swivel Union, 3/8" Female NPT Inlet, Removable Serrated Barb Tip, Right Handle

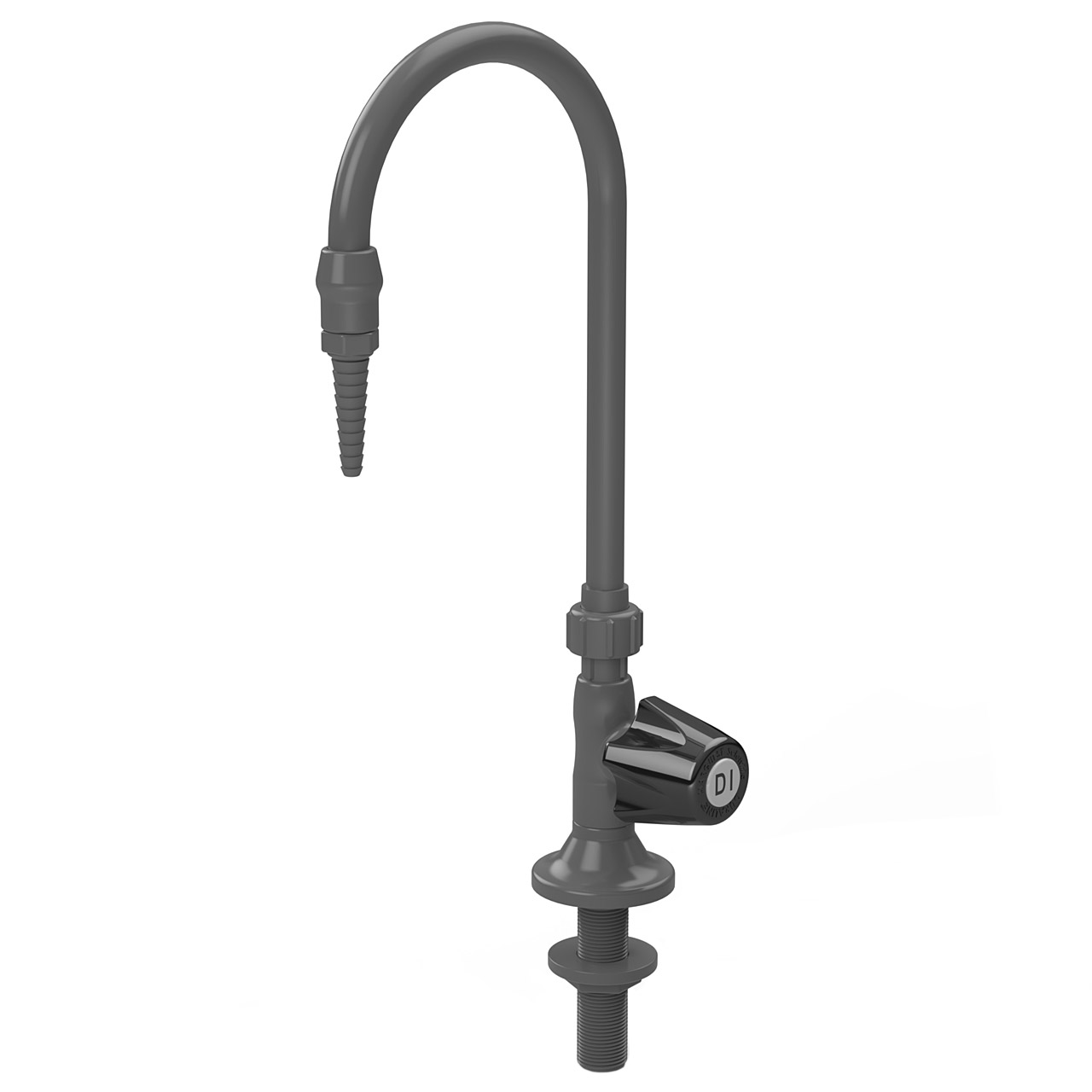

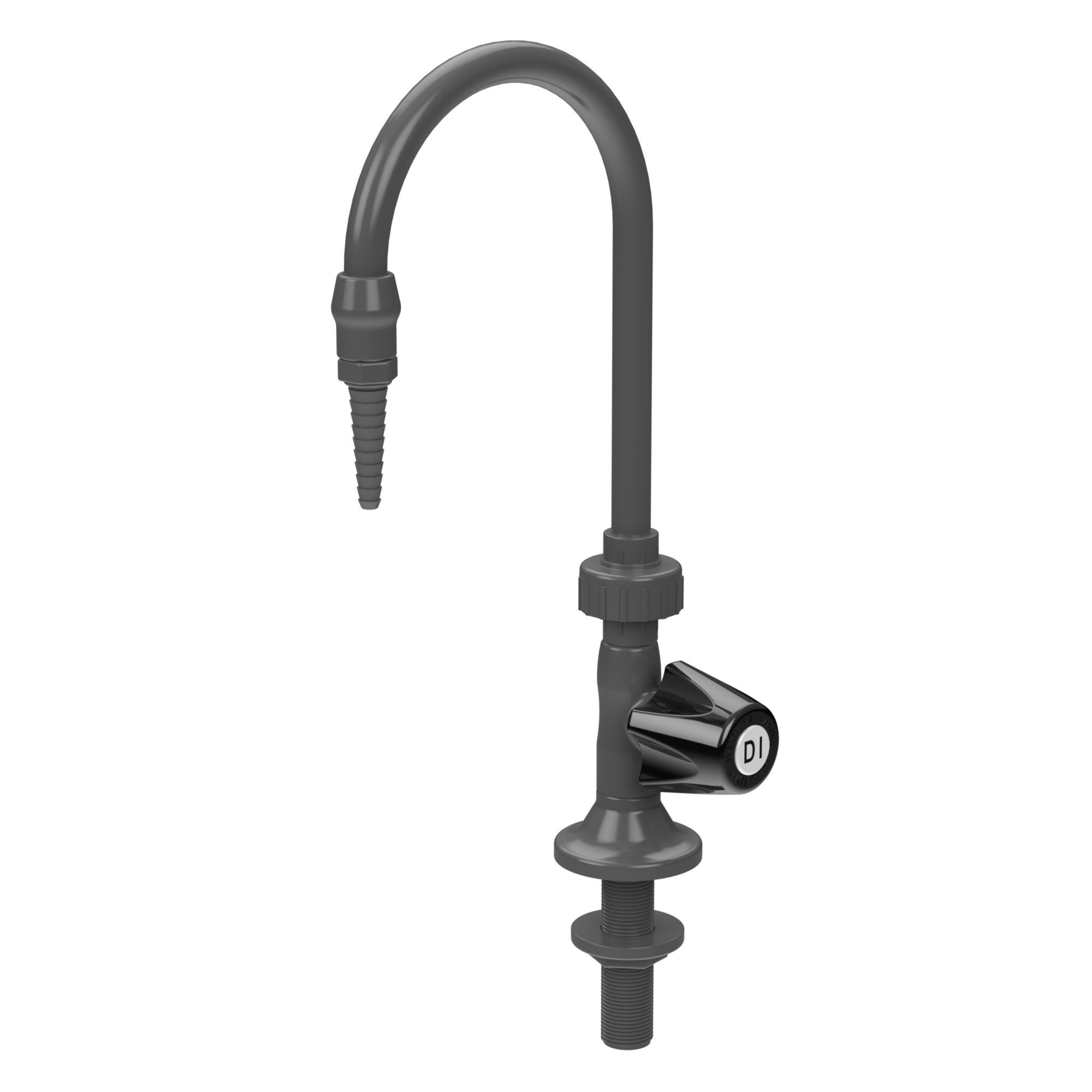

High Resolution Product Image

The LG-DDSU-R1 PVC Laboratory Faucet is designed for use with distilled, deionized, RO, and ultra-filtered water applications. This deck-mounted faucet features a Duraline control valve for precise flow control and an integrated swivel union that enables 360-degree rotation of the gooseneck for enhanced flexibility and accessibility. The faucet includes a removable serrated barb tip for attaching accessories.

• Flow rate: max flow rate of 2.4 GPM at 80 PSI, full open
• FDA, USDA, and USP standard are either met and/or exceeded
• All injection molded, rugged design and construction
• Gooseneck component is heavy wall, custom extruded for increased rigidity
• Material: PVC, NSF listed under 14/61 for both potable water & DWV Applications.
• Standard 3/8" female NPT inlet connection. Each faucet comes with Jaco 3/8" O.D. compression tube fitting
• Removable serrated outlet barb fitting accepts 1/4"-1/2" I.D. tubing, leaves 1/4" female npt inlet when removed
• Duraline control valve features all PTFE sealing; an encapsulated PTFE shut off seal provides an ideal construction geometry for keeping the PTFE in compression for constant on/off operation
• Duraline control valve is crevice free with zero dead leg
• Swivel union provides 360 degrees of rotation, the swivel union does not need to be loosened to operate swivel
