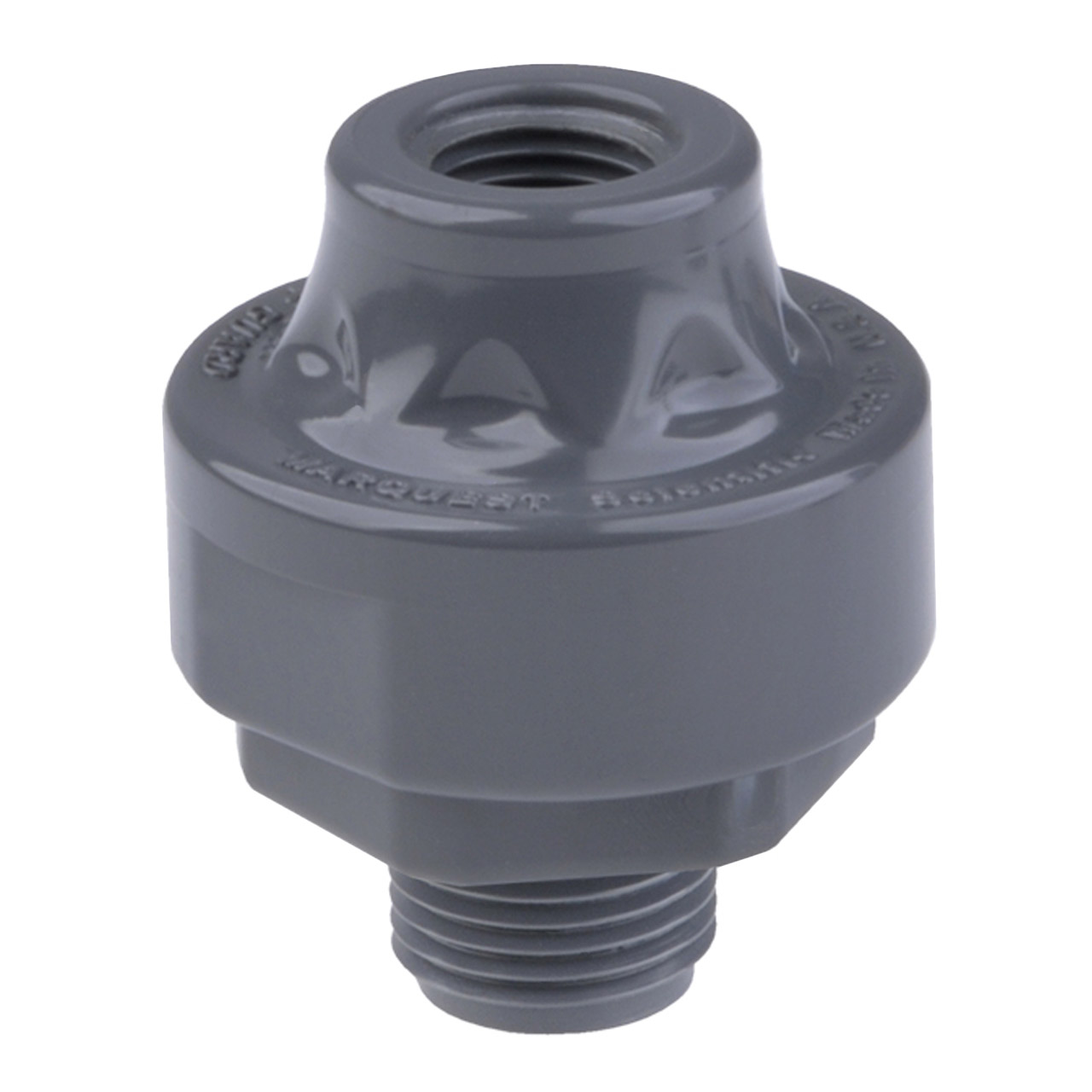

PVC Mini Tuff Guard Gauge Isolator, Gauge Guard

PVC Mini Tuff Guard Isolator, 1/4" Female Venting NPT Instrument x 1/2" Male NPT Process, Composite PTFE/FKM Diaphragm, No Gauge

Features & Benefits:

Provides a compatible, protective barrier between process fluids and instruments
Adds system reliability by eliminating instrument failures
All injection molded, rugged design and construction
Ultra compact size for limited space applications
Extremely low cost for O.E.M. integration
Replaceable diaphragm
Integral wrench provisions
Diaphragm safety features
Displacement capacity for up to 2 1/2" diapmeter gauges
Self Venting, 1/4" female NPT instrument connection. Zero pressure build when installing instrument

Instrument Connection:

1/4" Female NPT Venting Thread, with Viton O-Ring Instrument Seal

Process/Inlet Connection:
1/2" Male NPT

Max Pressure Ratings:

PVC: 250 PSI @ 72° Fahrenheit

Materials of Construction:

Upper & Lower Body: Injection molded in PVC. FDA, USDA, and USP standards are either met and/or exceeded, please contact us for further validation.

Diaphragm: Composite Diaphragm PTFE/FKM. Wetted side is Virgin PTFE. Non-wetted side is FKM.

Specifications

Materials	N/A PVC, PTFE/FKM Diaphragm
Instrument x Process Conn.	N/A 1/4" Fem Vent NPT x 1/2" MNPT
Max PSI	N/A 250 PSI
Shipping Note	N/A We will let you know the shipping charges once we receive the order.
