MTG-25015SS-CPVC, CPVC Mini Tuff Guard Isolator, 1/2" Inlet Male NPT, Composite PTFE/FKM Diaphragm, w/ 0-15 PSI Ashcroft All Stainless 2.5" Gauge, Glycerin Filled Case. 2.5% Accuracy Full Span

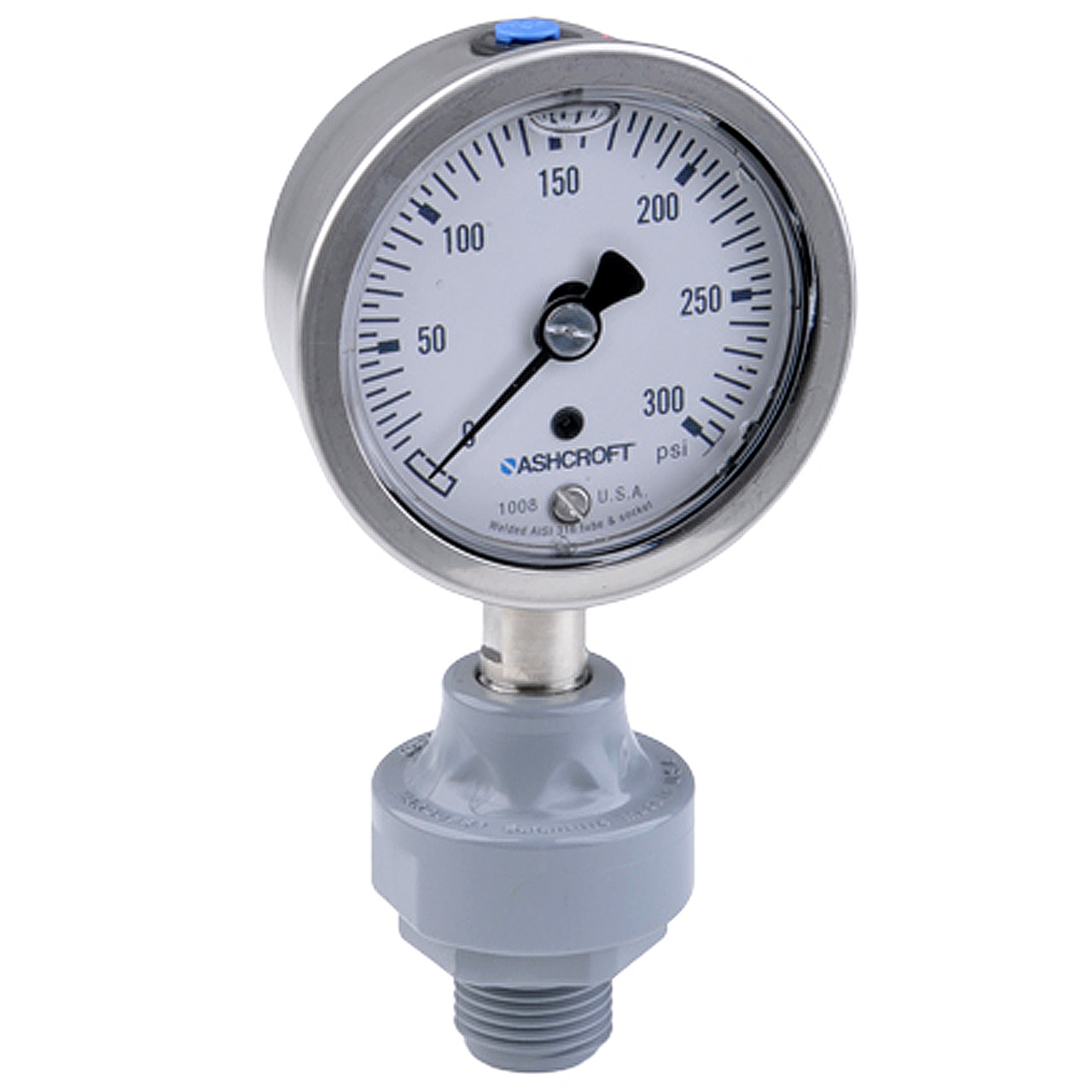

Product Image

• Features & Benefits
• Provides a compatible, protective barrier between process fluids and instruments
• Adds system reliability by eliminating instrument failures
• All injection molded, rugged design and construction
• Ultra compact size for limited space applications
• Extremely low cost for O.E.M. integration
• Replaceable diaphragm
• Integral wrench provisions Diaphragm safety features Self Venting, 1/4" female NPT instrument connection. Zero pressure build when installing instrument
• Instrument Connection
• 1/4" Female NPT Venting Thread, with Viton O-Ring Instrument Seal
• Gauge Style
• Ashcroft 1008s All Stainless 2.5" Dia. Gauge, Glycerin Filled Case. 1.5% Accuracy Full Span, 0-15 PSI
• Process/Inlet Connection: 1/2" Male NPT
• Max Pressure Ratings
• CPVC : 250 PSI @ 72° Fahrenheit
• Materials of Construction
• Upper & Lower Body: Injection molded in CPVC. FDA, USDA, and USP standards are either met and/or exceeded, please contact us for further validation.
• Diaphragm: Composite Diaphragm PTFE/FKM. Wetted side is Virgin PTFE. Non-wetted side is FKM.
• Assembly Internals Fill
• 70% Glycerin(99.5% FDA Approved), 30% Distilled Water Mix Silicone, Halocarbon Fills Available
