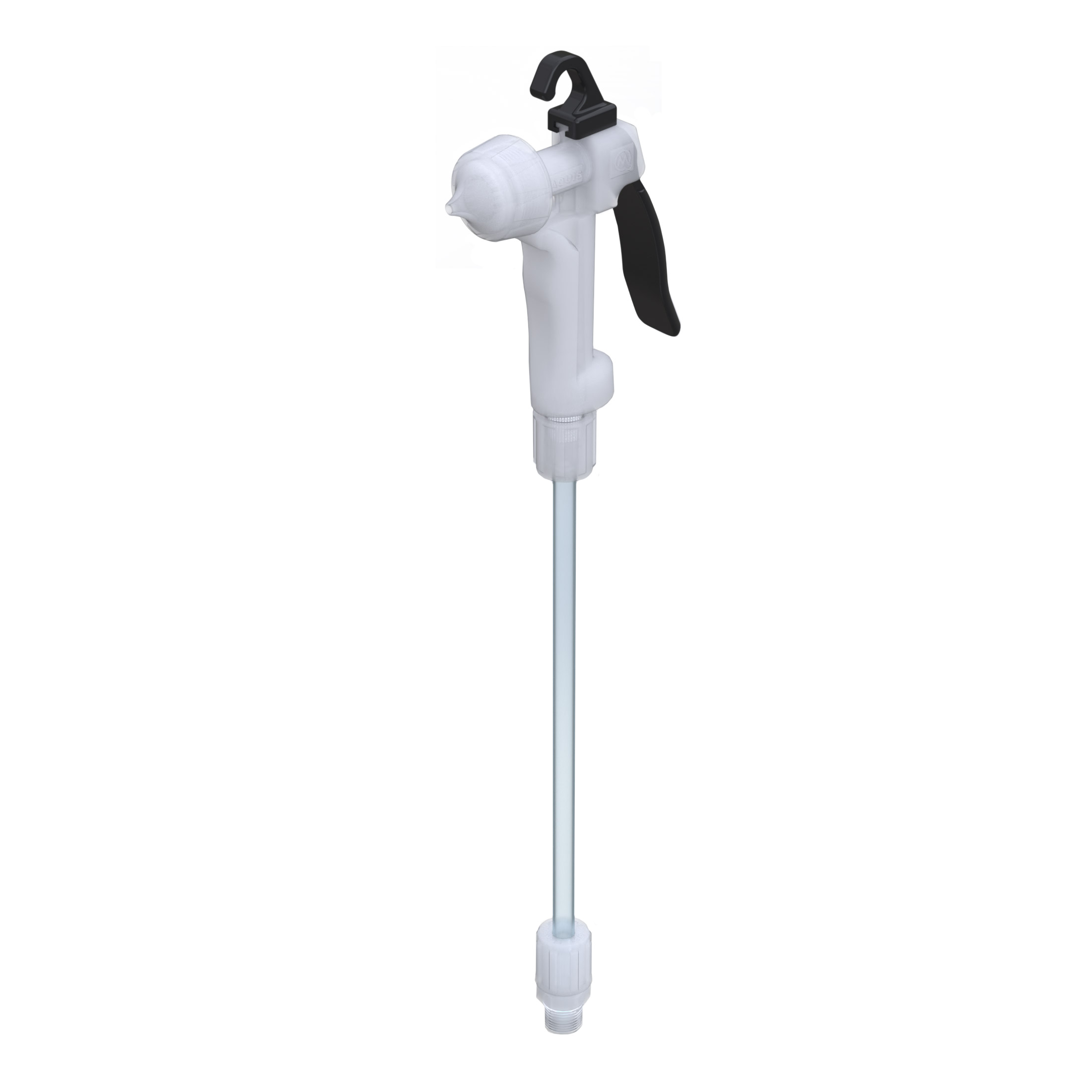

PVDF Aquis Nitro / Drying Gun w/ 3/8" Fem NPT Inlet (ANG-02), 10 Feet 3/8" OD PTFE Straight Tubing (S3-PTFE), Jaco PVDF 3/8" OD X 3/8" MNPT Compression Fittings (JC3-33), 0.8 PVDF Micron Filter Included, Assembled & Tested

Product Image

Product Video

Data Sheet

• The AQUIS Nitrogen Gun provides for the dispensing of nitrogen or other inert gases in high purity and corrosive applications
• All flow path surfaces are injection molded high purity, virgin PVDF or precision machined, Modified PTFE
• The proven piston / poppet component, precision machined from modified PTFE, provides all the sealing functions while offering exceptional cycle life
• No O-ring or elastomeric seals
• Removable/ reversible hanger component
• A cap / nozzle provides even distribution of compressed nitrogen or other inert gases for drying or other uses. Integral pressure relief feature prevents excessive pressure buildup should the outlet orifice be blocked
• Available connection options include ¼” female NPT, 3/8” female NPT and 3/8” flare tube
• Other options include coiled or straight tubing of different sizes and materials

The AQUIS Nitrogen Gun provides for the dispensing of nitrogen or other inert gases in high purity or hostile chemical environments. The design features a precision molded, all virgin high purity PVDF body and a one piece multi-purpose sealing component precision made of Modified PTFE material which isolates the flow to a pure path while performing the off sealing function. The excellent flexibility of this sealing component provides exceptional cycle life. All flow path surfaces are PVDF and Modified PTFE, eliminating any o-ring or other elastomeric seals. The Aquis Nitrogen Gun is available with any of 3 connections, ¼” female NPT, 3/8” female NPT or 3/8” flare. Other options include coiled tubing of different sizes and materials.
